Zylinderkit Stage6 R/T 70cc MK1, Minarelli liegend LC
Produktcode S6-7516602
Hersteller: STAGE6-RD
Ermässigtes Produkt

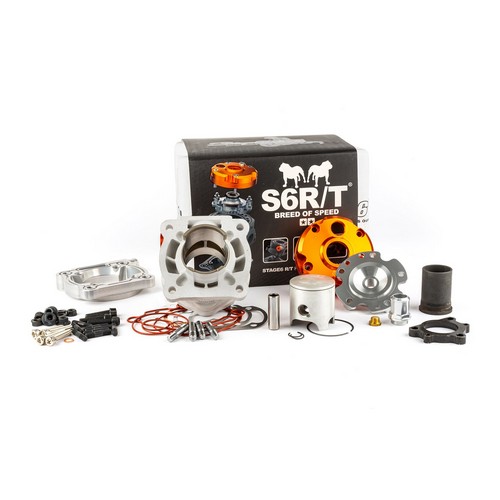

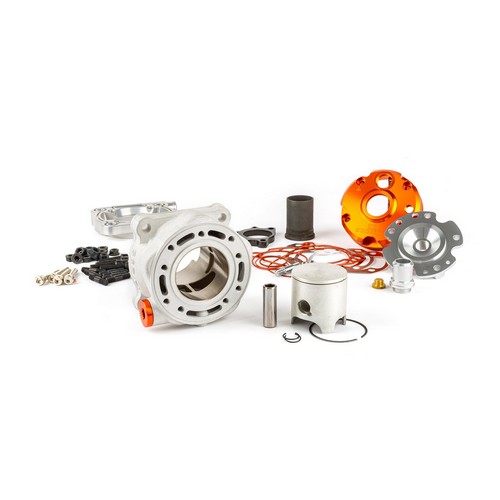

Stage6 R / T 70cc MKI Thermal Group, a & quot; Hyper Racing & quot; kit top of the range with a diameter of 47.6mm (70cc) developed by the R / T department of Stage6 (& quot; Racing / Team & quot;) for horizontal Minarelli.
& nbsp;

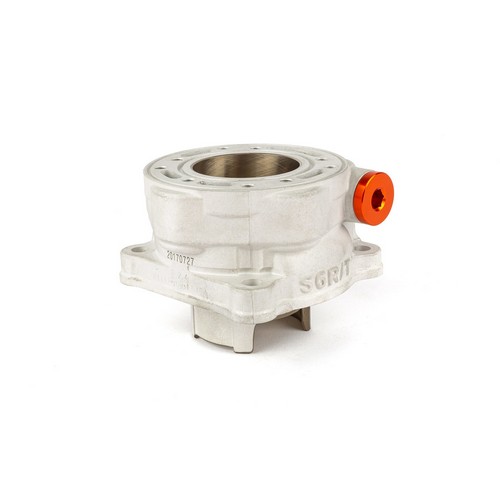

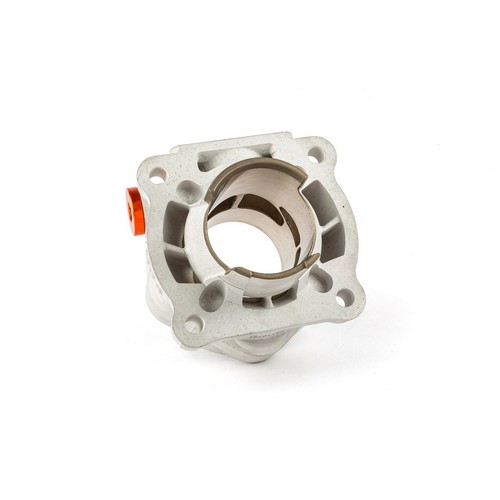

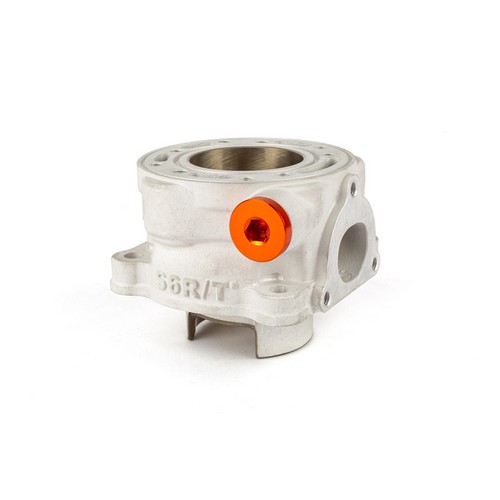

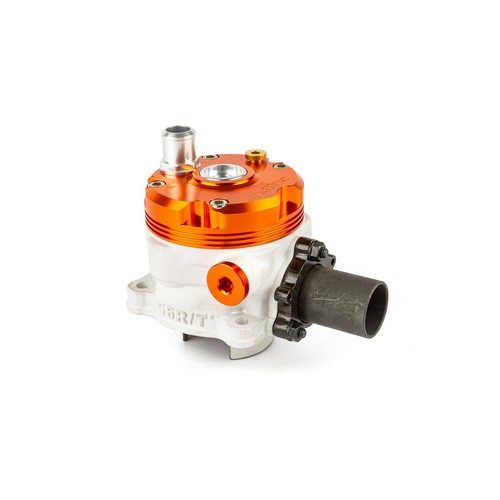

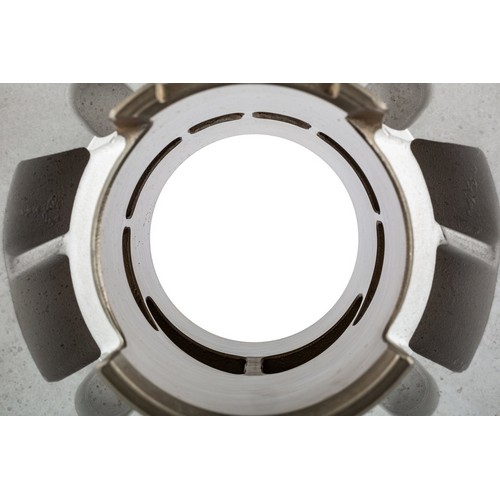

Cylinder Nikasil-plated aluminum with 6 transfer ports and a bridge exhaust port

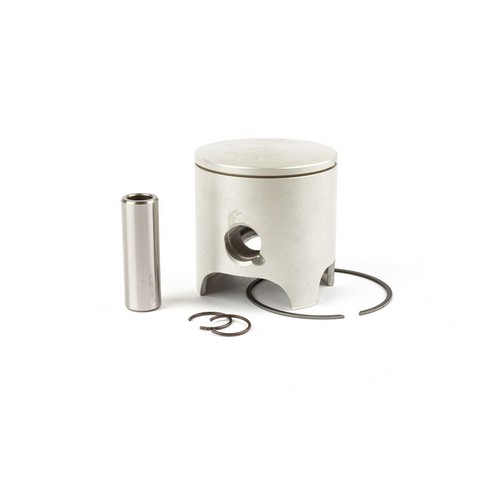

HQ piston, 12 mm pin, with extra thin piston ring

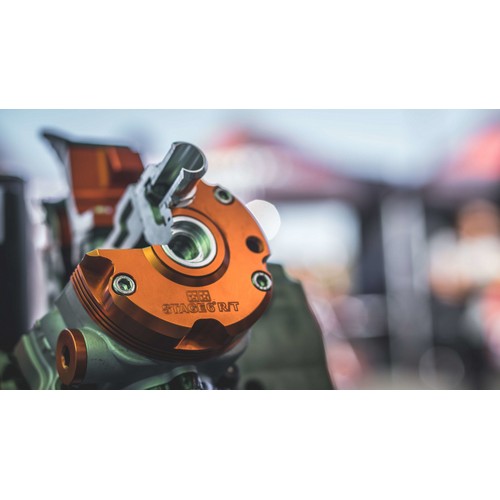

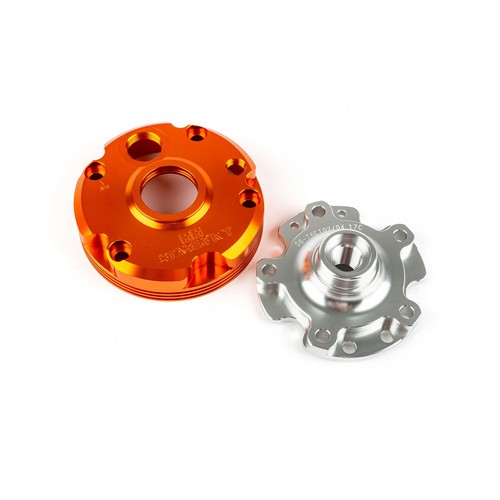

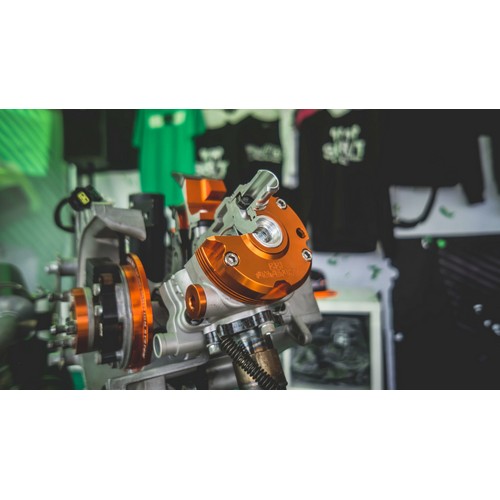

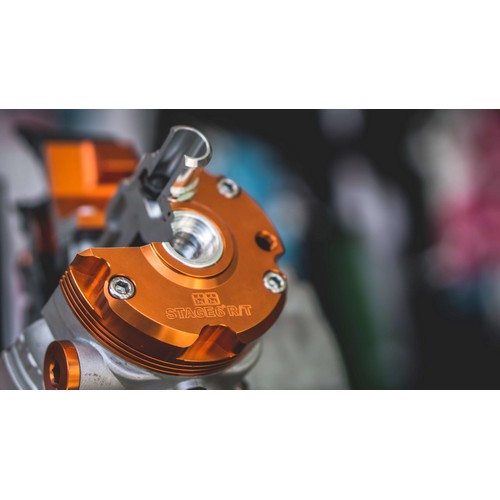

Modular high compression cylinder head ( anodized orange)

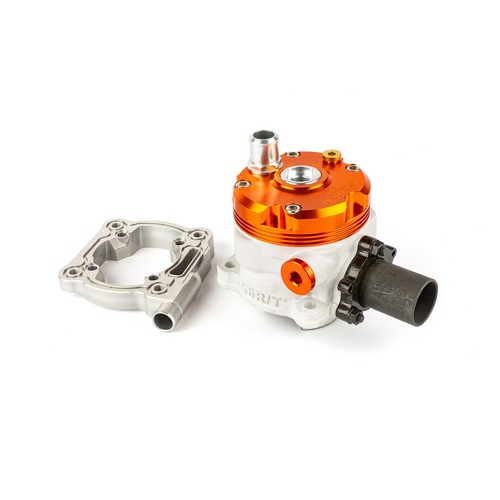

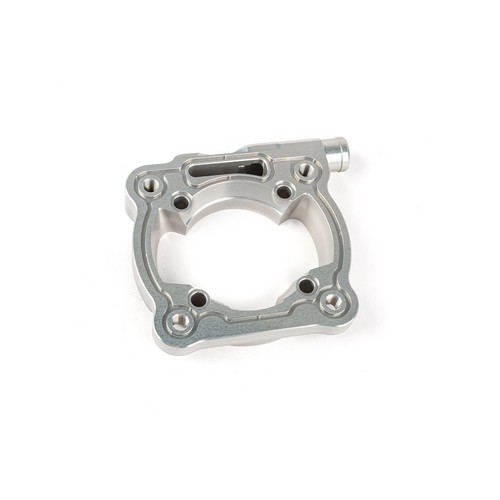

R / T cylinder spacer / adapter plate, new innovative design

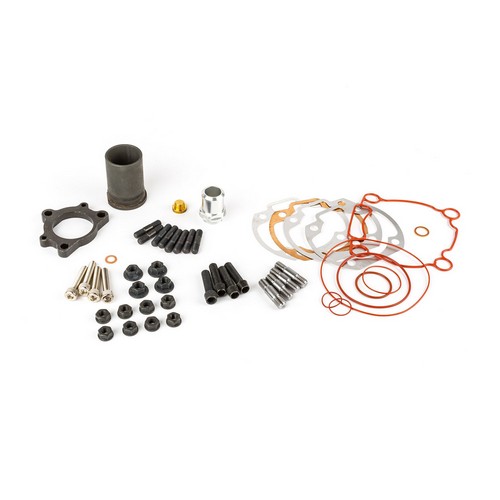

R / T exhaust flange + adapter plate

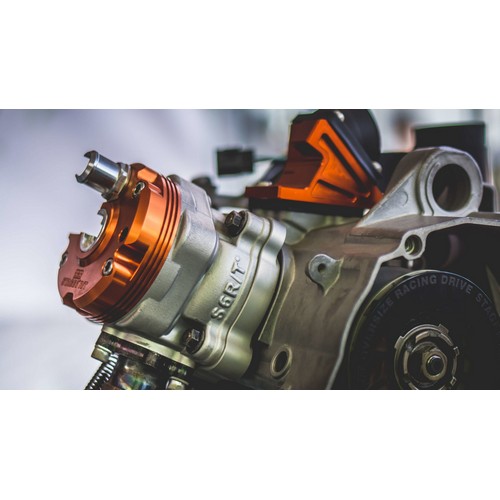

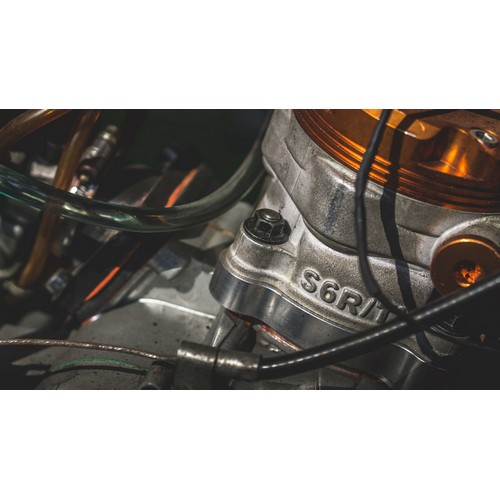

The special adaptation screws to the engine casing, the cylinder & egrave; mounted by external bolts so that there are no bolts cutting the cylinder; this new design opens up all kinds of options for tuners to modify and optimize their engine (port) without being subject to the usual restrictions. A Viton O-ring seal between the adapter plate and the cylinder makes future adjustments unnecessary.
& nbsp;

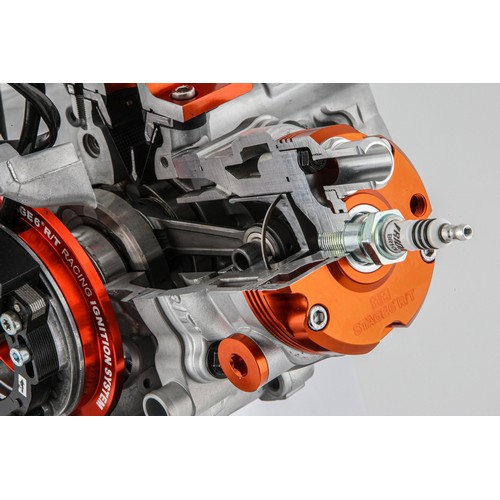

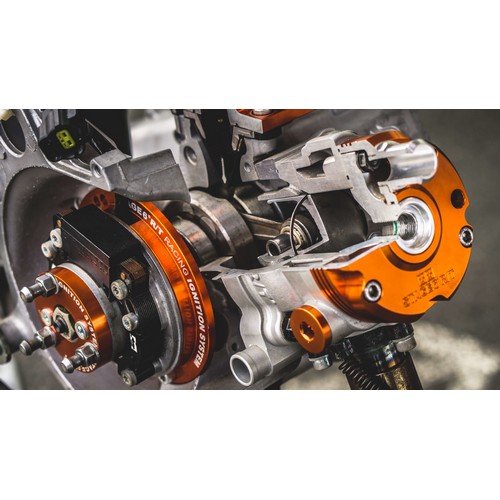

When it comes to performance, the Stage6 R / T cylinder kit 70cc MKI MBK Nitro / Aerox reaches from 20 to 22 hp and can & ograve; easily be ranked among the best 70cc high end racing kits on the market. The properties thermal are excellent: the combustion chamber & egrave; bolted to the cylinder in five places, each with its own cooling pocket. These highly critical areas are thus; stabilized and the risk of piston seizure & egrave; reduced to a minimum.
& nbsp;

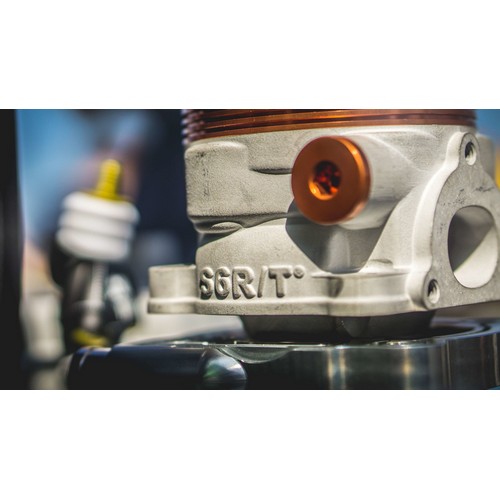

The exhaust flange is; fixed with 3 bolts. & Egrave; suitable for Stage6 R / T exhausts, other flange types are available.
& nbsp;
Note: you will need to mill the crankcase to make room for the cylinder base (d = 56.1 mm +/- 0.1 mm, depth 10 mm).
This Stage R / T cylinder kit can be combined with a Stage6 R / T exhaust only.
& nbsp;
For horizontal Minarelli engines.
Diameter 47.6 mm - Stroke 39 mm - Pin 12 mm piston - 85 mm connecting rod
